84 C Linear Ceiling Panels Manufacturer in Ghaziabad, Ludhiana, Punjab, Delhi NCR & India

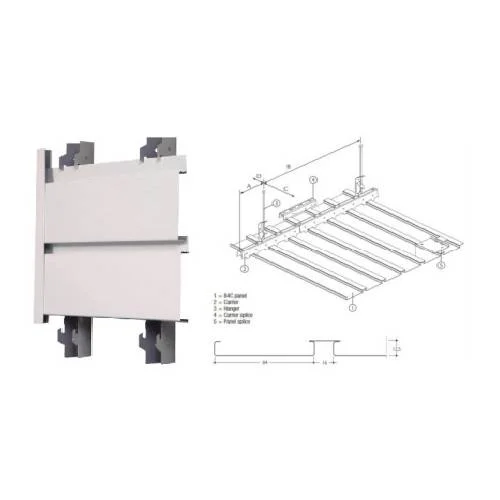

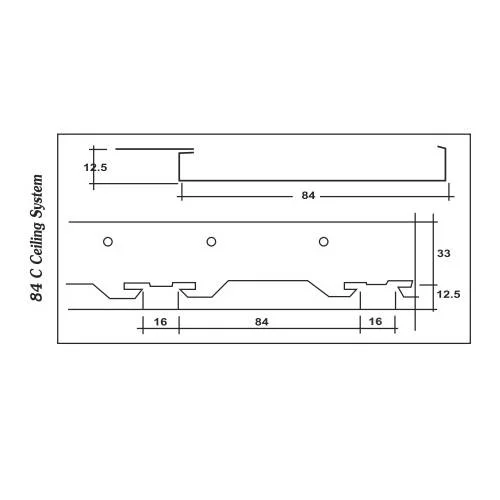

ROYAL KRAFT 84 C ceiling system comprises of 84 mm x 12.5 mm panels with 23.9 mm flange roll formed out of metal coils galvanized coil coated steel or aluminium alloy. Panels are fixed on to roll formed carriers 32 mm wide x 39 mm deep out of 0.9 mm Aluminium or 0.5 mm galvanized steel sheet with cut outs to hold the panels in module of 100 mm at maximum 1.5 m c/c without insulation and at maximum 1.2 m c/c with insulation. Carriers are suspended from the roof or truss by 4 mm dia. galvanized steel wire rod hanger with special height adjustment suspension clip at max. 1.2 m c/c. Hangers are fixed to the roof by ceiling bracket. Panels are available in lengths up to maximum 5 m to suit site dimensions. Edge profiles or wall angles are 24 mm X 24 mm X 0.4 mm thick and match the colour of the panel. 16 Material used for panels and carrier: Aluminium Alloy AA5050, AA3105 or AA1050 is used to make the panels and carrier. Thickness is 0.5 mm for panels and 0.9 mm for carriers. Panel are made of Galvanised steel with 100 gsm Zinc coating and 20 microns polyester paint coil coating sheets. Panels can be available in 60 microns polyester powder coating galvanized steel with 100 gsm Zinc coating or in aluminium alloy in different colours.
Acoustics
Noise is major concern when designing indoor spaces. Room sound absorption is one of the most important factors in controlling built-up reverberant noise and in reducing sound transmission between rooms. Perforated Suspended ceilings provide good acoustics control both by helping to reduce sound within a room and by reducing sound transmission from room to room. Modern buildings are increasingly becoming noisy places with high people density and instrument and appliance noise.
Suspended acoustical ceilings serve to provide sound absorption on the most useful surface in a room. It helps in reducing reverberant sound intensity within a room.Royal Kraft Metal False Ceiling range comprises different type of perforated panels with an acoustic non-woven material factory applied to the rear side of the panels. Due to the controlled sound impedance
of this perforated panel, and with a backing air space (ceiling plenum), the Royal Kraft ceiling provides excellent sound absorption properties without the use of any fibrous material behind the perforated panel.
Thermal Insulation
Suspended False Ceilings help in Thermal Insulation of buildings. Due to superior Thermal Insulation property of the ceiling material external heat is kept outside while air-conditioned cooling is preserved inside.
Royal Kraft is a leading 84 C linear ceiling panels manufacturer in Ghaziabad, Ludhiana, Punjab, and Delhi NCR, offering high-quality aluminum and metal strip ceiling systems for modern commercial and institutional spaces.

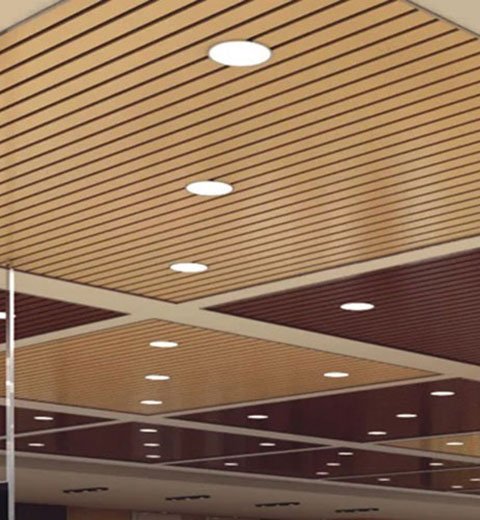

Our 84 C linear ceiling panels are designed to create a clean, uniform, and contemporary ceiling appearance. These interlocking panels provide excellent durability, corrosion resistance, and easy maintenance, making them ideal for offices, airports, shopping malls, hospitals, metro stations, and corporate buildings.
With a strong manufacturing base in Ludhiana (Punjab) and marketing operations in Ghaziabad (Delhi NCR region), we ensure fast supply and bulk project support across North India and nationwide.
Key Features of 84 C Linear Ceiling Panels:
- Premium aluminum and metal construction
- Smooth, modern strip ceiling design
- Easy suspended installation system
- Fire-resistant and corrosion-resistant finish
- Custom sizes and color options available
If you are searching for a reliable 84 C linear ceiling supplier in Delhi NCR, Punjab, or anywhere in India, Royal Kraft provides precision-engineered and aesthetically superior ceiling solutions directly from the manufacturer.
